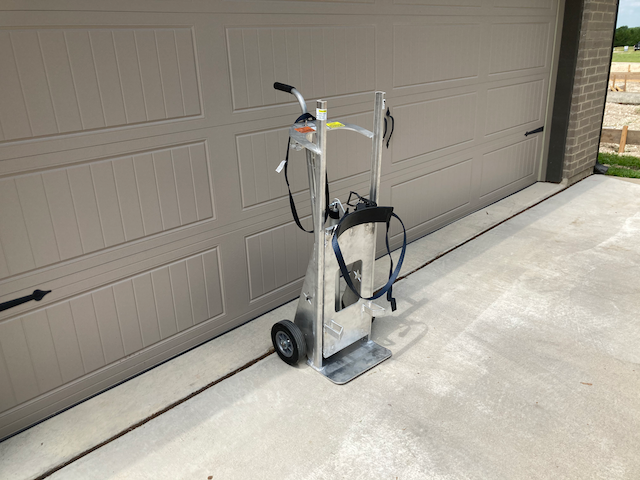

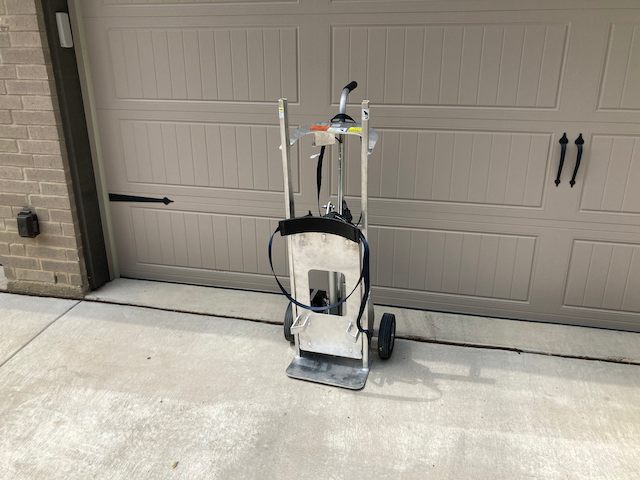

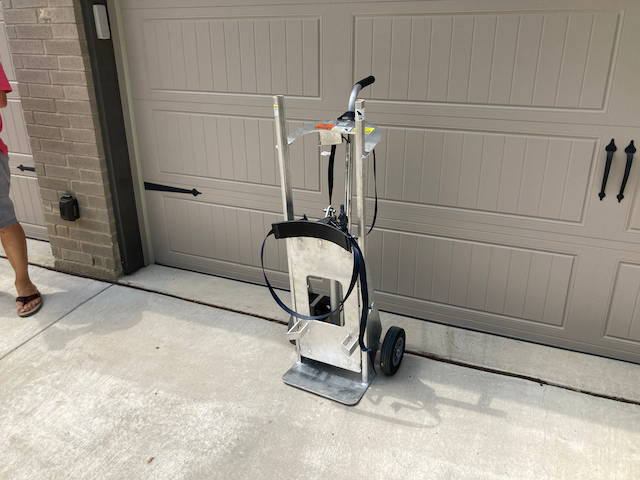

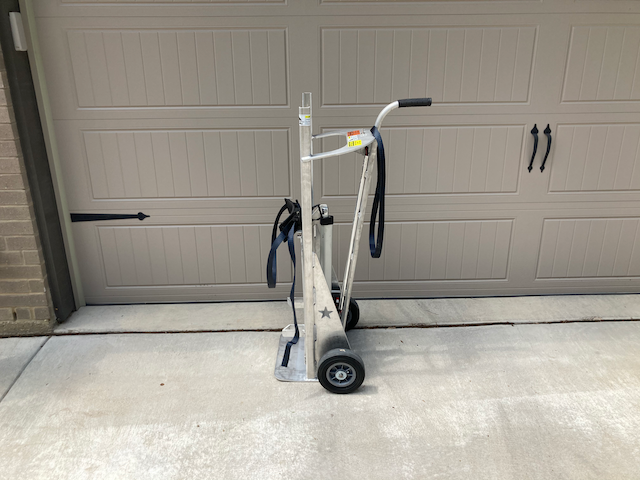

SK-400

The unique design features that make installation and removal of water heaters more efficient and operated by an individual include the following:

• The combination of a lift and tilt mechanism that works to lift a partially full water heater above the pan without removing or damaging the pan.
• A battery powered (rechargeable) lift actuator capable of lifting a water heater into or out of an existing water heater pan operated from the convenient control panel mounted on the operator side of the dolly.
• A slim design capable of securing the water heater to the tilt-frame of the dolly that will fit within openings typical of residential or commercial water heater closets.
• A two-wheel dolly capable of one-person operation to maneuver an empty or partially full water heater through homes or businesses to and from the water heater closet.
• Unique tilt design that operates from the optimum center of gravity of the water heater to easily and minimally tilt the water heater to remove it from the closet with minimum horizontal and vertical clearances in the opening of the water heater closet.
• An adjustable security strap that secures the water heater to the dolly during the lift and till maneuver enabling one-person operation.
• A secure lift and tilt mechanism that minimize the risk of shifting the weight of the water heater thereby minimizing the risk of the water heater falling.
• Unit comes with 1 year warranty.

Specifications

• Weight Capacity: 225 lbs
• Unit Weight: 51 lbs
• Maximum Lift Height: 20"
• Tire Height: 8"
• Overal Dimensions: 16"L x 20"W x 47"H
• 12 Volt Sealed Lead Acid Rechargeable Battery
• Patent pending US 17/172,737
